DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics

ShenZhen Mingjiada Electronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics

Brand Name : Original Factory

Model Number : DRV8243SQRXYRQ1

Certification : Lead free / RoHS Compliant

Place of Origin : CN

MOQ : 10

Price : Contact for Sample

Payment Terms : T/T, L/C, Western Union

Delivery Time : 5-8 work days

Packaging Details : 14-VFQFN

Part Number : DRV8243SQRXYRQ1

Current - Output : 12A

Voltage - Supply : 4.5V ~ 35V

Voltage - Load : 4.5V ~ 35V

Operating Temperature : -40°C ~ 125°C (TA)

Package : 14-VFQFN

Contact Now

DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics

Product Description Of DRV8243SQRXYRQ1

DRV8243SQRXYRQ1 devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers.

Specification Of DRV8243SQRXYRQ1

Part Number

DRV8243SQRXYRQ1

Product Status

Active

Motor Type - Stepper

Bipolar

Motor Type - AC, DC

Brushed DC

Function

Driver - Fully Integrated, Control and Power Stage

Output Configuration

Half Bridge (2)

Interface

PWM, SPI

Technology

Bi-CMOS

Applications

Automotive

Features Of DRV8243SQRXYRQ1

  • 4.5-V to 35-V (40-V abs. max) operating range
  • PWM frequency operation up to 25 KHz with automatic dead time assertion
  • Configurable slew rate and spread spectrum clocking for low electromagnetic interference (EMI)
  • Integrated current sense (eliminates shunt resistor)
  • Proportional load current output on IPROPI pin
  • Configurable current regulation
  • Protection and diagnostic features with configurable fault reaction
  • Supports 3.3-V, 5-V logic inputs
  • Low sleep current - 1μA typical at 25°C

Applications Of DRV8243SQRXYRQ1

  • Automotive brushed DC motors, Solenoids

  • Door modules , mirror modules, and seat modules

  • Body control module (BCM)

  • E-Shifter

  • Gas engine systems

  • On board charger

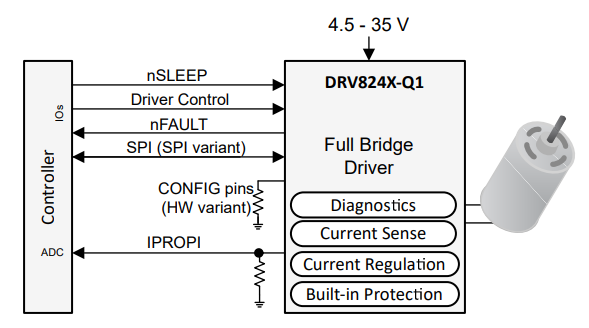

Simplified Schematic Of DRV8243SQRXYRQ1

DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics
